Connector Identification

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1994 Mercedes-Benz SL600, 1994 Mercedes-Benz SL500, 1994 Mercedes-Benz SL320, 1994 Mercedes-Benz E500, and 1994 Mercedes-Benz E420. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying 38-Pin (X11/4) Data Link Connector Terminal Pin Arrangement
G00275281Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

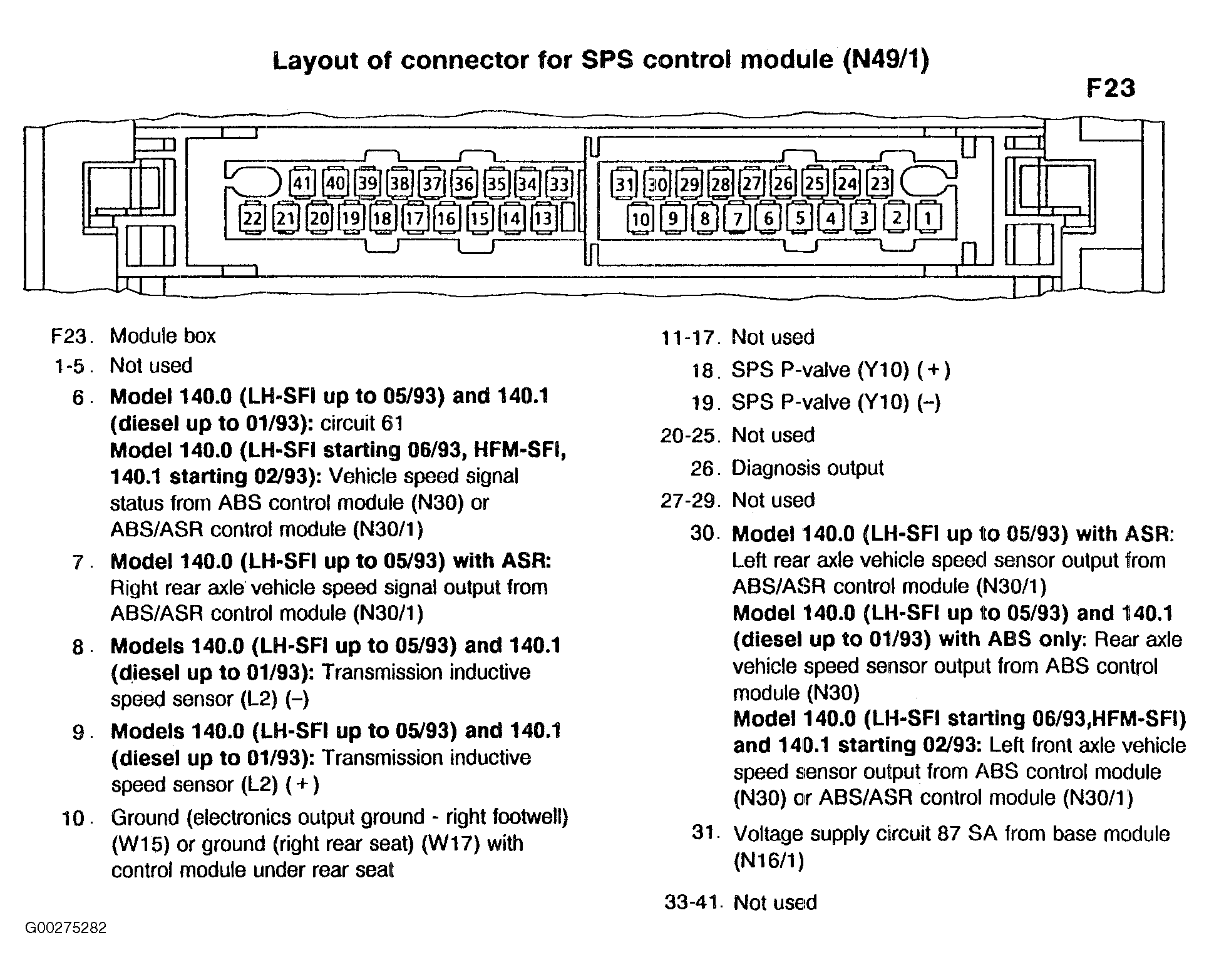

Fig 2: Identifying SPS Control Module (N49/1) Connector Terminal Pin Arrayment
G00275282Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
