Remove/install bulbs of headlamp unit - AR82.10-P-1201D

MODEL 129 with CODE (612) Xenon headlamp unit

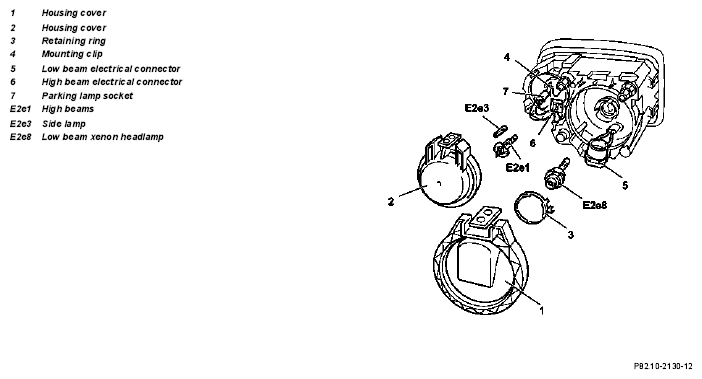

Fig 1: Identifying Bulbs Of Headlamp Unit Components (2 Of 3)

	Remove/install
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/risk of fire  due to highly flammable materials in the area of damaged xenon bulbs Risk of injury  from UV light, hot components at xenon headlamps and glass splinters when xenon bulbs crack Risk of poisoning  from inhaling mercury vapors and from swallowing/skin contact with poisonous salts and mercury compounds	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure the work area is adequately ventilated.	AS82.10-Z-0001-01A
1	Switch off ignition
2	Remove washer fluid reservoir	Only required for the right lamp unit.
3	Unclip housing cover (1, 2)	Check gasket for damage and wear, replace if necessary. (Code 419): In the event of a defect to the xenon bulb, the lamp unit must be replaced ↓
		Remove lamp unit	AR82.10-P-4730B
4	Disconnect electrical connection of the particular bulb (E2e1, E2e3) or xenon bulb (E2e8)
5	Remove socket of standing light (7)	Except for (code 419).
6	Open mounting clamp (4) or fastening ring (3) for particular bulb
7	Carefully remove bulb (E2e1, E2e3) or xenon bulb (E2e8)	Do not touch the glass of the bulb or xenon bulb with your bare fingers, instead use a grease-free, soft cloth Ensure bulb is correctly installed.
8	Install in the reverse order
9	Carry out function check
