Anti-theft alarm (ATA), location of components - GF80.50-P-0001-02S
Models 215, 220
Location of components

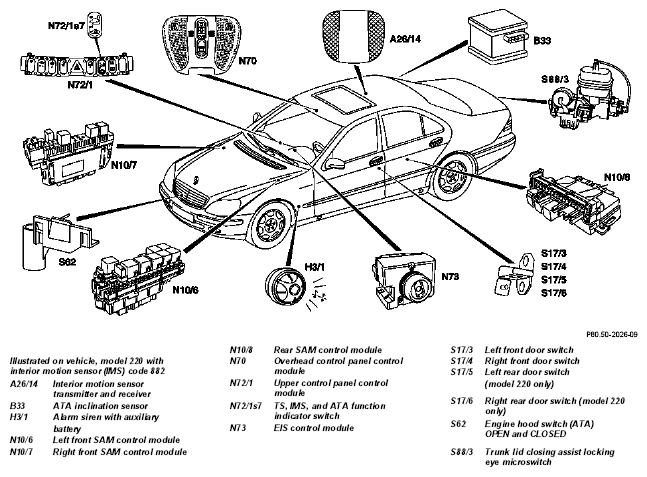

Fig 1: Identifying Anti-Theft Alarm (ATA) Components Location - Illustrated On Model 220
