Transmission oil temperature sensor, location/task/design - GF27.19-P-4014N
TRANSMISSION 722.9 in MODEL 171.4, 203, 209, 211, 215, 219, 220, 230
TRANSMISSION 722.9 in MODEL 463.303 /340 /341

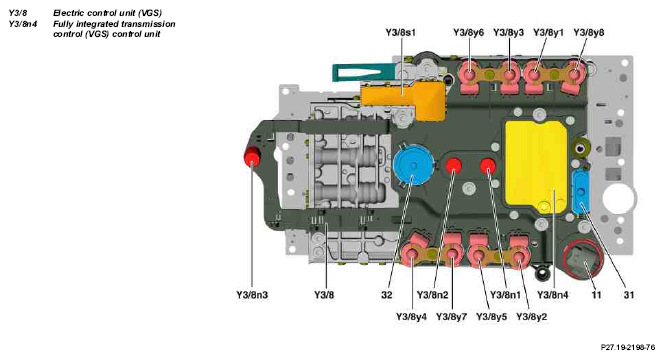

| Transmission oil temperature sensor, location | The transmission oil temperature sensor (VGS) (Y3/8s2) is integrated in the fully integrated transmission control (VGS) control unit (Y3/8n4). | ||
| Transmission oil temperature sensor, task | The transmission oil temperature sensor (VGS) (Y3/8s2) detects the transmission oil temperature and passes this on as an input parameter to the fully integrated transmission control (VGS) control unit (Y3/8n4). | ||
| Transmission oil temperature sensor, design | Temperature-dependent resistor |
