R/P lock, location/task - GF27.60-P-5121N

TRANSMISSION 722.9 in MODEL 215, 220, 230

TRANSMISSION 722.9 in MODEL 463.303 /340 /341

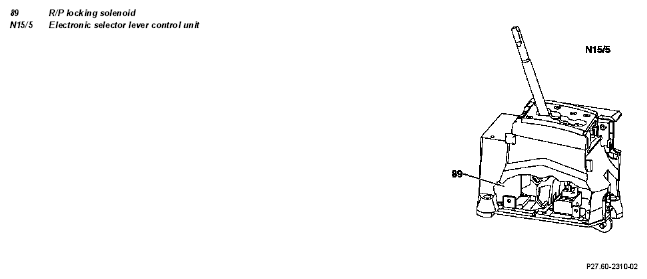

Fig 1: Identifying R/P Locking Solenoid And Electronic Selector Lever Control Module
G04840465
  R/P lock, location The R/P lock is integrated in the electronic selector lever module control unit (N15/5).
  R/P lock, task The R/P lock prevents the selector lever from being shifted into selector lever position "R" above a speed of approx.
8 km/h. The R/P lock also locks the selector lever in position "P" when the shift lock is active.
