Automatic transmission (AT) location of components, floor shift - GF27.10-P-0001-04GAZ

Transmission 722.6 in model 215, 220 as of 01.09.02

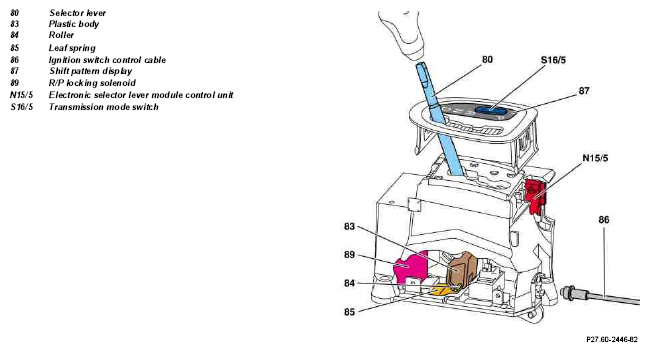

Fig 1: Identifying Automatic Transmission Components Location (Models 220)
G04840425
