Removing and installing lumbar support control valve of front seat backrest - AR91.25-P-1440N
MODEL 215

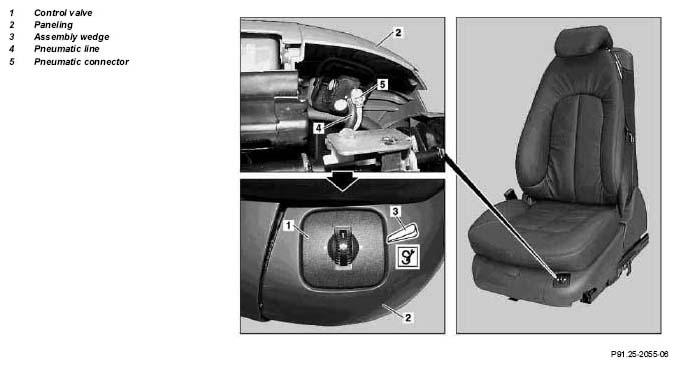

Fig 1: Identifying Lumbar Support Control Valve Of Front Seat Backrest Remove/Install Components - Model 215
| Removal, installation | |||
| 1 | Unclip control valve (1) from paneling (2) on front seat with assembly wedge (3) | Figure | |
| 2 | Disconnect pneumatic line (4) and pneumatic connector (5) | ||
| 3 | Install in opposite order | ||
| 4 | Check lumbar support for proper function |
