Removing and installing center panel on front seat backrest - AR91.10-P-1910N
MODEL 215
| Removal, installation | |||

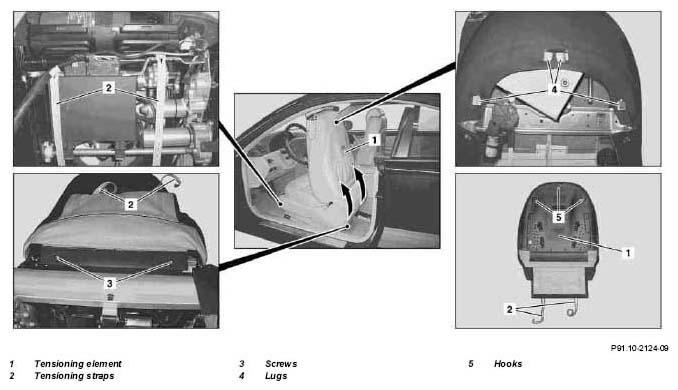

| 1 | Position front seat upward and unhook tensioning straps (2) below seat at front | ||
| 2 | Position front seat backrest toward front | ||
| 3 | Press bottom cover below tensioning element cover upward (see arrows) | ||
| 4 | Unscrew screws (3) | ||
| 5 | Pull tensioning element (1) out of lugs (4) on backrest frame downward and remove | ||
| 6 | Install in opposite order |
