Transmission overload protection, function - GF07.61-P-4026SM
ENGINE 113.986
ENGINE 113.987
ENGINE 113.988
ENGINE 113.989
The transmission overload protection function protects the shift elements of the automatic transmission (722.6) from excessive thermal stresses during load changes in the upper engine speed range.
Engine torque is reduced by briefly retarding the ignition and closing the throttle valve, reducing charge pressure during gearshifts.

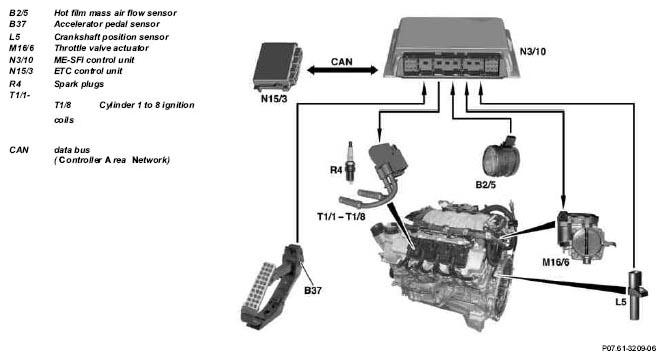

The ME-SFI control unit (N3/10) is supplied with a signal via the CAN databus by the ETC control unit (N15/3) for this purpose.
The ME control unit controls in line with the performance map, if altering the ignition angle is sufficient or if the throttle valve must be retarded.
| Crankshaft position sensor component description | L5 | GF07.04-P-6010SM | |
| Hot film MAF sensor component description | B2/5 | GF07.07-P-6000SM | |
| ME-SFI [ME] control unit component description | N3/10 | GF07.61-P-6000SM | |
| Spark plug component description | R4 | GF15.10-P-2000SM | |
| Component description of ignition coil | T1/1-T1/8 | GF15.10-P-2100SM | |
| Accelerator pedal sensor, component description | B37 | GF30.20-P-2010SM | |
| Component description of throttle valve actuator | M16/6 | GF30.20-P-2020SM |
