Fuel consumption signal function - GF07.61-P-3029KE

ENGINE 113.990 in MODEL 211, 219

ENGINE 113.991 in MODEL 215, 220

ENGINE 113.992 in MODEL 230

ENGINE 113.993 in MODEL 463

ENGINE 113.995 in MODEL 230

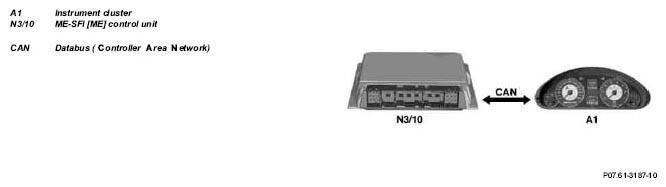

Fig 1: Identifying Instrument Cluster, ME Control Unit And Data Bus (Controller Area Network) (Engine 113.993)

The current fuel consumption is sent to the trip computer in the instrument cluster by the ME-SFI [ME] control unit in the form of square-wave pulse packages.

One square-wave pulse means 0.2 l/h.

The instrument cluster calculates and displays the consumption signal (e.g. 8.2 liters/hour).
