Arrangement and assignment of ground terminals, cockpit - GF00.19-P-2000-03CA
Model 215
| Ground point | Designation | Component | Designation | Connector Pin |
|---|---|---|---|---|

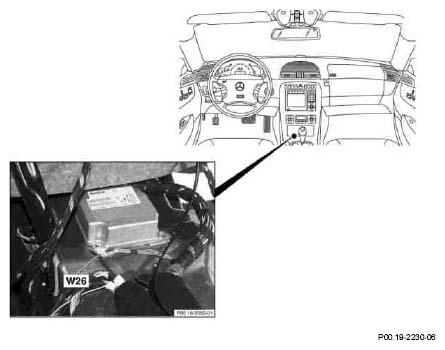

| W26 | Ground (restraint systems control unit) | → A53/1 | Left side airbag and window airbag sensor | 1 |
| → A54/1 | Right side airbag and window airbag sensor | 1 | ||
| → A60 | Vehicle-sensitive seatbelt lock sensor | 2 | ||
| → N2/7 | Restraint systems control unit | 56 83 84 |
||
| → N32/1 | Left front seat adjustment control unit with memory | 13.11 | ||
| → N32/2 | Right front seat adjustment control unit with memory | 13.11 | ||
| → Z53/9 | Interior sleeve connector, airbag circuit 31 |
