Fuse & Circuit Breakers - 215 & 220 Chassis: Description

The vehicle's electrical systems is protected by an assortment of fuses and relays. Protective fuses should only be replaced by fuses of correct rating.

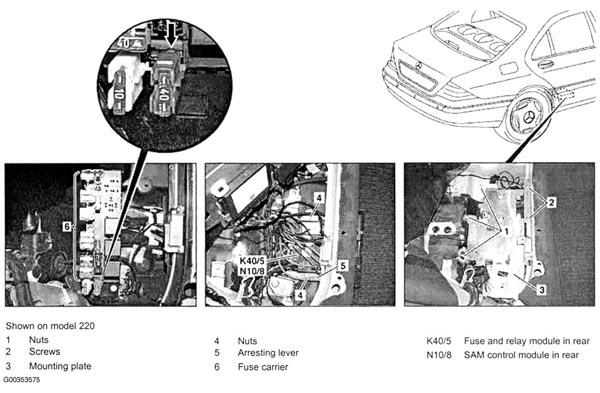

Fig 1: Identifying Location Of Fuse & Relay Box K40/5 As-Built Configuration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

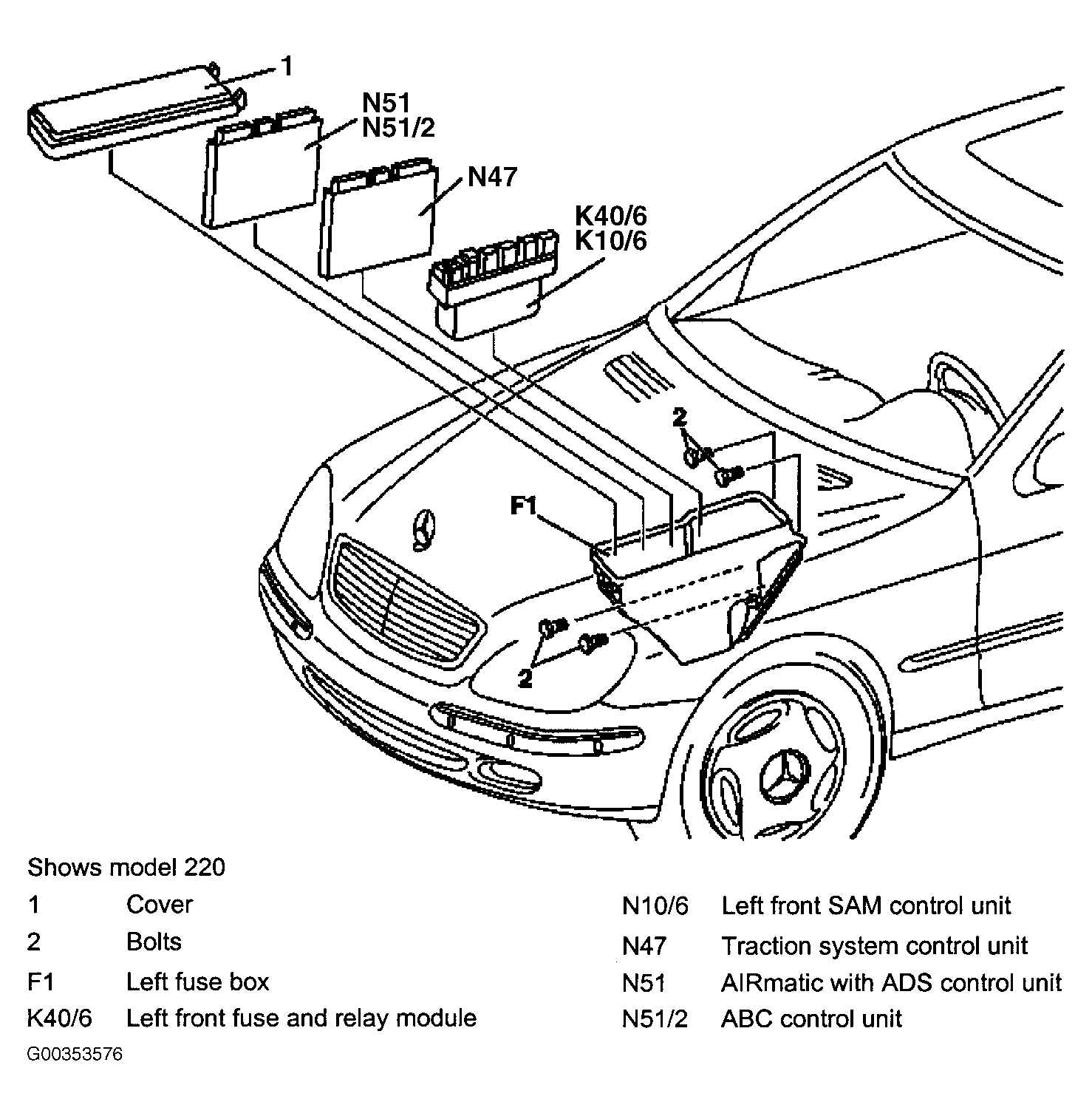

Fig 2: Identifying Location Of Fuse & Relay Box K40/6 As-Built Configuration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

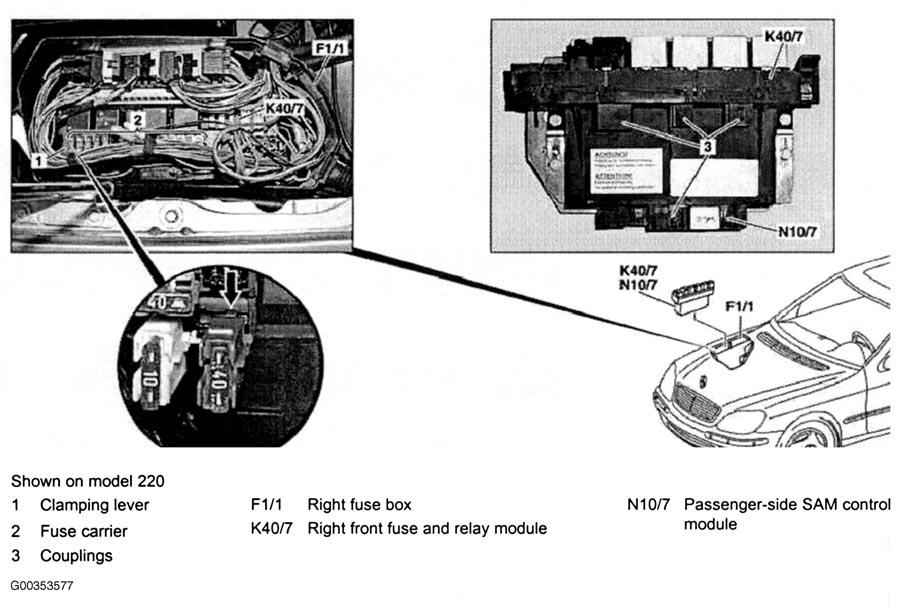

Fig 3: Identifying Location Of K40/7 Fuse & Relay Box As-Built Configuration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

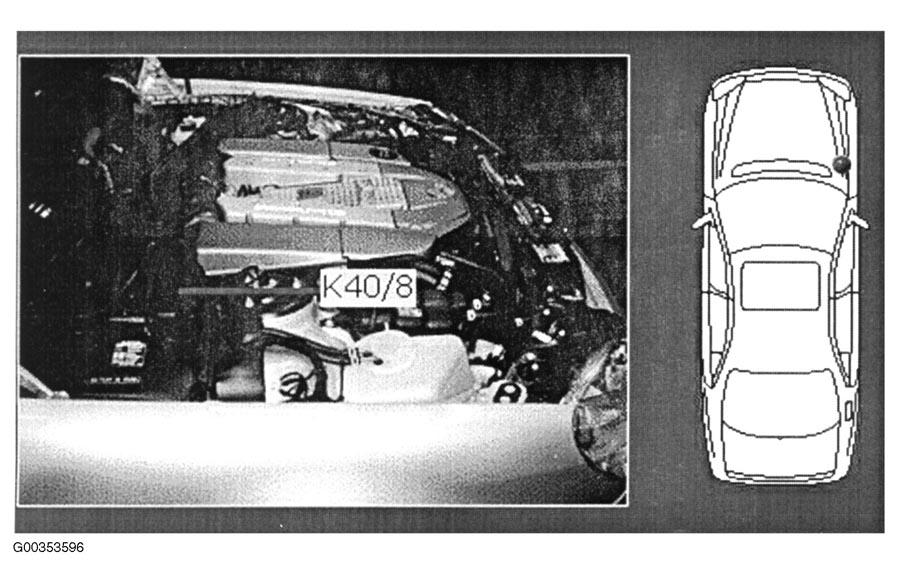

Fig 4: Identifying Location Of K40/8 Fuse & Relay Boxes As-Built Configuration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

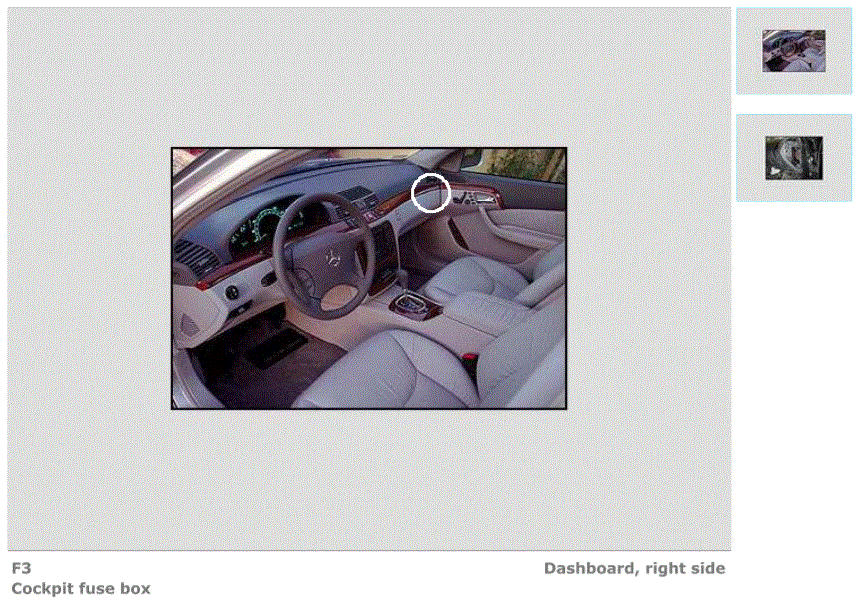

Fig 5: Identifying Location Of K40/8 Fuse & Relay Boxes As-Built Configuration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
