Removing and installing front door lock - AR72.10-P-4011MC

MODELS 220.175 /178 with CODE (Z04) Light armoring

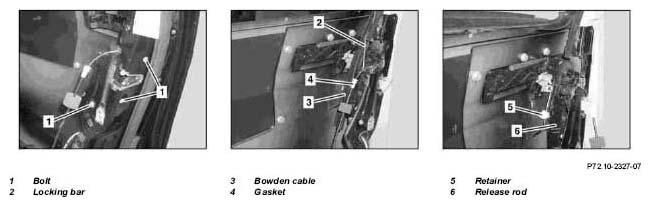

Fig 1: Identifying Front Door Lock Remove/Install Components - Light Armoring

	Remove/install
1	Remove, install inner door panel		AR72.10-P-0104MC
2	Remove outer door handle from front door		AR72.10-P-2400MB
		Installation:  Check clearance by pulling the door handle until there is noticeable resistance. Adjust if necessary ↓ With retainer (5) open, press release rod (6) upward until there is noticeable resistance. Then close the retainer (5) again.	*BE72.10-P-1001-01C
3	Unscrew screws (1)		*BA72.10-P-1008-01E
4	Detach locking bar (2) from door lock
5	Detach, remove Bowden cable (3) from door lock
6	Detach gasket (4) of window guide upward
7	Open retainer (5)
8	Remove door lock	Guide wiring harness through grommet. Installation:  Guide release rod (6) into retainer (5).
9	Install in the reverse order

FRONT DOOR TIGHTENING TORQUE

Number	Designation		Model 220
BA72.10-P-1008-01E	Screw at door lock	Nm	10

FRONT DOOR TEST VALUES

Number	Designation		Model 220
BE72.10-P-1001-01C	Gap	mm	2 (±1)
