Remove, install window in rear door - AR72.12-P-1920MC

MODELS 220.175 /178 with CODE (Z04) Light armoring

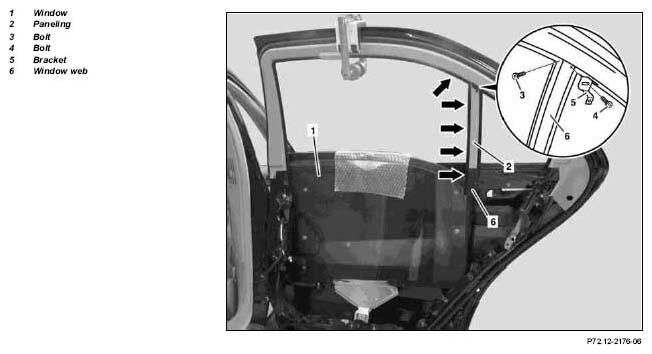

Fig 1: Identifying Rear Door Window Remove/Install Components

	Remove/install
	Operations involving work on glass panes and windows are potentially dangerous; use caution to avoid allowing hands or feet to become caught.	Secure windshield and windows from dropping down; use only the lifting tools specified for such operations. Wear safety shoes.	AS67.00-Z-0003-01A
	Instructions for avoiding damage to windows installed in special high-security vehicles	MODEL 210 with Code Z04, Code Z06 MODEL 220 with Code Z04, Code Z07	AH67.00-P-0003-01FB
1	Remove rear door inner door panel		AR72.12-P-0104MC
2	Remove trim strip with outer sealing rail		AR72.10-P-1700E
3	Lower window (1) completely	Window must be secured by the window separator bar to prevent it from falling out.
4	Detach gaskets (arrows) in area of window separator bar	Gaskets are adhered, do not damage.
		Installation:  MB special adhesive	*BR00.45-Z-1002-02A
5	Detach paneling (2)	Paneling is adhered, do not damage.
		Installation:  MB special adhesive	*BR00.45-Z-1002-02A
6	Unscrew bolts (3, 4), detach bracket (5)	Bracket (5) only for vehicles with sun blind.
7	Remove window separator bar (6)	Secure window. Do not damage gasket at the triangular window.
8	Remove window (1)
9	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-02A	Special glue	A 000 989 92 71
