Power window switch, rear doors, location - GF72.29-P-4104-01S

Model 220

The left rear power window switch (S21/3)  and right rear power window switch (S21/4)  are located in the door liner on the corresponding rear door.

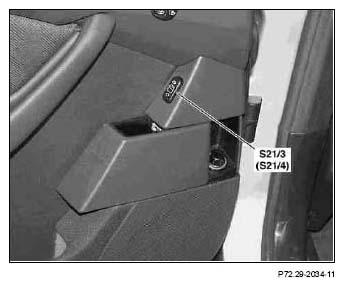

Fig 1: Identifying Left And Right Rear Power Window Switch
G04849923
