Retrofitting ski bag housing - AN91.22-P-0001-03M

Models 215, 220

1. Unclip plastic plate at rear wall in rear into interior of vehicle.

   Part is not required.

   Fig 1: Identifying Plastic Plate

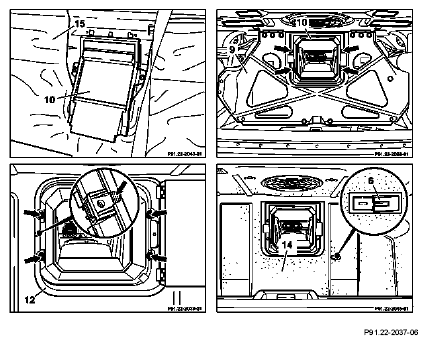

2. Insert skibag housing (10) into through-loading facility of rear wall (2) and screw on with two self-tapping screws.
   Fig 2: Inserting Skibag Housing Into Through-Loading Facility Of Rear Wall


3. Insert rear wall insulation mat (15) in rear and fix in place; cut out the perforated cutout for the skibag housing (10).

Only for models with refrigeration compartment in center rear armrest (code 308)

1. 4.1 Insert contact mount (6) into recess of rear wall trim in trunk (see enlarged detail at bottom right).

   For all models

2. 5 Install rear wall trim (14) with recess for through-loading facility.

   Only for models with refrigeration compartment in center rear armrest (code 308)

3. 6.1 Work out stamped opening at skibag mount (12) on left side for attaching refrigeration compartment (see enlarged detail at bottom left).

   For all models

4. 7 Insert skibag mont (12) into skibag housing (10) and attach at bulkhead (9) with four screws.
   Fig 3: Inserting Skibag Mont Into Skibag Housing
