Remove/install rear door power window motor - AR72.29-P-1880M

MODEL 220

Internal Torx drive bolt

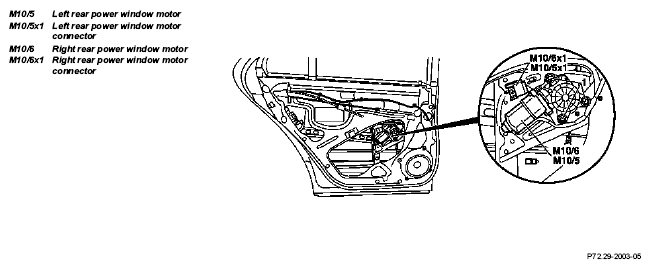

Fig 1: Identifying Internal Torx Drive Bolt

	Remove, Install
1	Remove door liner from rear door		AR72.12-P-1010M
2	Partially remove insulating mat from inner door panel	From bottom to top until inner Torx screws are visible.
3	Disconnect left/right power window motor connector (M10/5x1, M10/6x1) from left/right rear power window motor (M10/5, M10/6)
4	Unscrew Torx socket bolts (1)		Figure
			Figure
		Protect motor against falling down
			*BA72.29-P-1002-01A
5	Remove left/right rear power window motor (M10/5, M10/6) from power window and door	Before installing grease gear on motor lightly
6	Install in the reverse order

TORQUE SPECIFICATION

ELECTRIC SYSTEM-SIDE DOORS TIGHTENING TORQUE

Number	Designation		Model 220
BA72.29-P-1002-01A	Bolt of motor of electric window lifter of rear door	NM	5

Fig 2: Identifying Torque Wrench (000 589 67 21 00)

G04850129

Fig 3: Identifying Internal Torx Set (000 589 01 10 00)

G04850130
