Remove/install power window on front door - AR72.10-P-1800M

MODEL 220

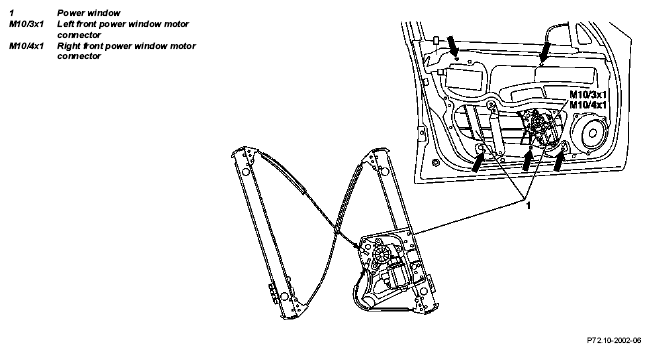

Fig 1: Identifying Left And Right Front Door Power Window Motor Connector

	Remove, Install
1	Remove/install front door liner		AR72.10-P-1000M
2	Remove insulating mat from inner door panel, glue on
3	Remove crank window		AR72.10-P-1900M
4	Remove left/right front power window motor connector (M10/3x1, M10/4x1) from power window motor
5	Drill pop rivets (arrows) out of inner door panel or cut out	To drill out use Ø 4.8 mm dia. bit and do not damage inner door panel. Use punch to drive out remaining rivet residues. Remove rivet residues and chips from door, danger of rust. Installation:  Rivet power window (1) to inner door panel flush  with new pop rivets.
6	Unhook power window (1) out of inner door panel and remove downward through assembly opening.	Installation:  Hook window lift mechanism onto inner door panel with the four assembly hooks
7	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
