Remove/install front door damper - AR72.10-P-2200MB

MODEL 220.175 /178 with CODE (Z07) Top protection

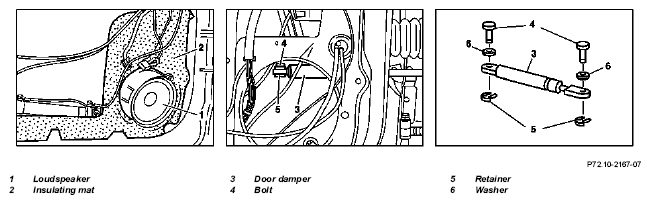

Fig 1: Identifying Front Door Damper Remove/Install Components - Top Protection

	Remove/Install
1	Remove door liner from front door		AR72.10-P-1000MB
2	Remove speaker (1)
3	Remove retainers (5) and bolts (4) with washers (6)	Carefully loosen insulating mat (2).
4	Remove door damper (3)	Installation:  The noticeable unevenness on the door damper housing (3) must point upward. The new door damper (3) should have the same length as the previous one.
5	Install in the reverse order
