Removing and installing front door control module - AR72.29-P-1000N
MODEL 215
| Removal, installation | |||

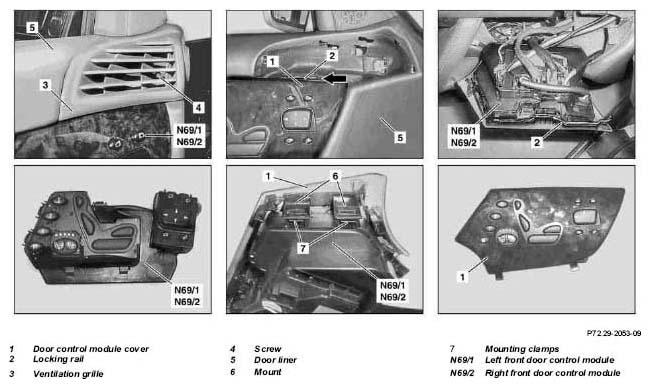

| 1 | Unscrew screw (4) from ventilation grille (3) and remove ventilation grille (3) from door liner (5) | ||
| 2 | Press locking rail (2) for door control module cover (1) back in direction of arrow and release door control module cover (1) | ||
| 3 | Disconnect front left/right door control modules (N69/1, N69/2) connectors and remove door control module cover (1) together with front left/right door control modules (N69/1, N69/2) | ||
| 4 | Unclip front left/right door control modules (N69/1, N69/2) from door control module cover (1) | ||
| 5 | Install in opposite order | ||
| 6 | Check for proper function |
