Notes on sealant pattern for rear inner door panel - AH72.12-P-0001-01MC

MODEL 220 with CODE Z04

IMPORTANT Provide sealing profile according to diagram.

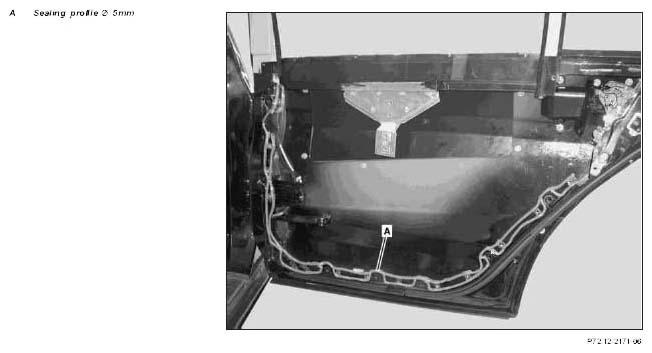

Fig 1: Identifying Sealant Pattern For Rear Inner Door Panel
G04849917
