Notes on sealant pattern for front inner door panel - AH72.10-P-0001-01MC

MODEL 220 with CODE Z04

IMPORTANT Provide sealing profile according to diagram.

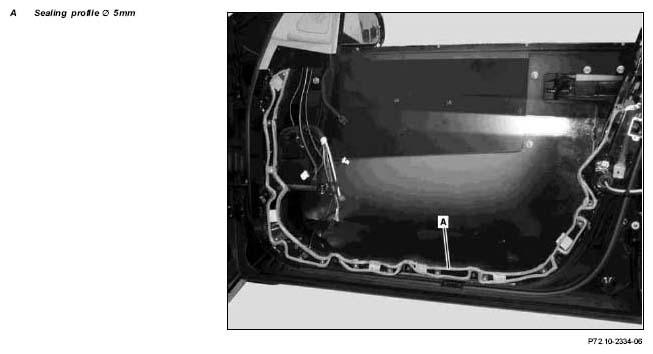

Fig 1: Identifying Sealant Pattern For Front Inner Door Panel
G04849916
