Retrofitting seat control module mounting - AN91.29-P-1000-03N
MODEL 220

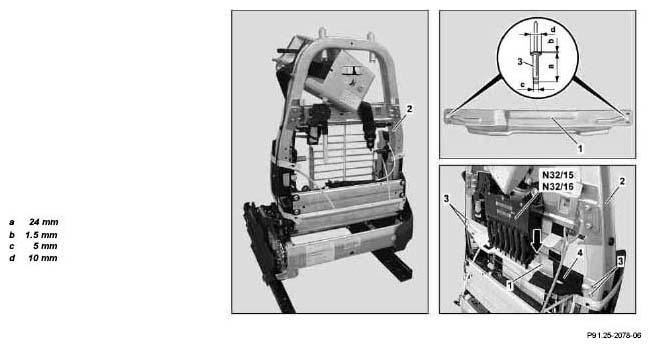

- Attach seat control module crossmember (1) to existing holes at backrest frame (2) with rivets (3, 4 in total).
If no holes are provided at the backrest frame (2), these must be drilled.
To do this, provisionally attach seat control module to top crossmember and push bottom crossmember into mount of seat control module (see arrow). This provides the dimension for the holes at the backrest frame.
- Stick self-adhesive felt mats (4) onto the seat control module crossmember (1) as a chafing protection, as shown in illustration.
