Warning display, design - GF54.65-P-4104-03A
Shown on models 168, 202, 208, 210, 215, 220
Illustrated on model 140

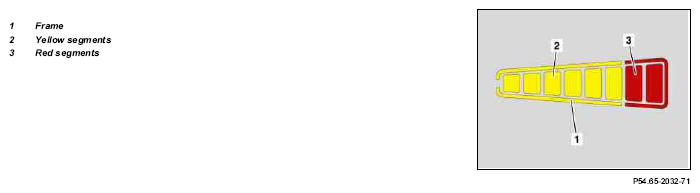

On models 140, 168, 202, 208, 210, 215, 220 the warning indicators consist of LCD bar displays with 6 yellow segments (2) and 2 red segments (3) and the frame (1).
The frame (1) is yellow in the area of the yellow segments (2) and red in the area of the red segments (3).
On model 163 the warning indicators consist of LED displays with 6 yellow and 2 red light emitting diodes, the source of sound and the microprocessor which the control unit data telegram evaluates and converts.
