Fuel pump relay position - GF54.15-P-4105-01AM

Model 215, 220

Shown on MODEL 220

The fuel pump relay is located on the rear fuse and relay module (socket T).

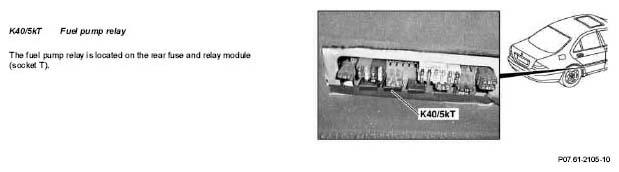

Fig 1: Identifying Fuel Pump Relay (Plug Position T) - Models 215, 220
G04849608
