Check batteries for remote control key - AR80.35-P-4205E

MODEL 202 as of 1.6.97, 208, 210 as of 1.3.97, 215, 220, 240

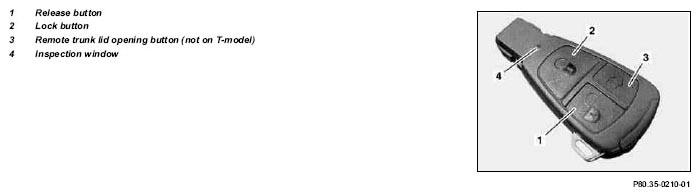

Fig 1: Identifying Remote Control Key Components - Model 202 As Of 1.6.97, 208, 210 As Of 1.3.97, 215, 220, 240
G04635886
  Inspect
  Hold release button (1) or lock button (2) or remote trunk lid opening button (3) for longer than 1 second Light emitting diode in the inspection window (4) must light up briefly, if necessary: ↓
    Replace batteries for remote control key. AR80.35-P-4210E
