Electronic selector lever module control unit, location/task - GF27.19-P-5140GA

TRANSMISSION 722.6 in MODELS 215, 220, 230, 240

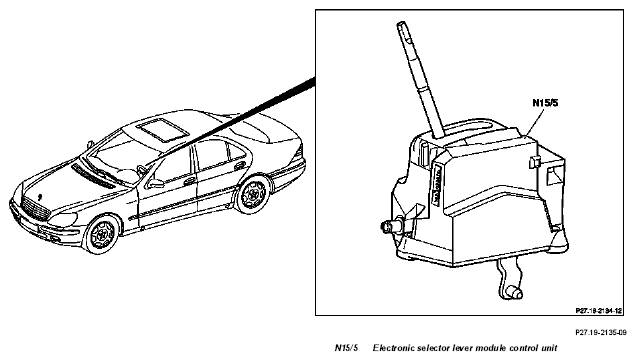

Fig 1: Identifying Electronic Selector Lever Module Control Unit (Shows Model 220)
G04840445

Shows model 220

  Electronic selector lever module control unit, location The control unit for the electronic selector lever module (N15/5) is located in the center console of the vehicle.
  Control unit for electronic selector lever module, task Model 215, 220 GF27.19-P-5138-02GA
    Model 230 except code (428a) steering wheel shift buttons GF27.19-P-5138-02R
    Model 230 with code (428a) steering wheel shift buttons GF27.19-P-5138-02RX
    Model 240 GF27.19-P-5138-02X
