Remove/install rubber mount on track rod - AR35.20-P-0112-01IA

Fig 1: Identifying Removal And Installation Tool (220 589 00 43 00)

Eccentric rubber mount

If the range of adjustment of the cam bolt is not sufficient when adjusting the toe, the rubber mount installed as standard can be replaced by an eccentric rubber mount.

The toe-in can be reduced by 15" (figure A) or increased by 15" (figure B) by offsetting by 1.5 mm when pushing in the rubber mount (4b).

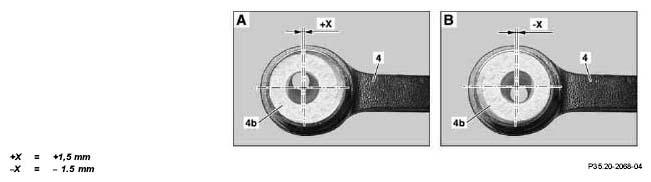

Fig 2: Identifying Eccentric Rubber Mount Dimension

Remove rubber mount

1. Using the extraction and insertion tool, press the rubber mount (4b) out of the tie rod (4). To do this use sleeve (04g) and thrust piece (04h).
   Fig 3: Identifying Rubber Mount And Tie Rod



   Install eccentric rubber mount

2. Press rubber mount (4b) with sleeve (04g) and thrust piece (04h) into the tie rod (4) until the thrust piece (04h) abuts the eye of the tie rod (arrow).

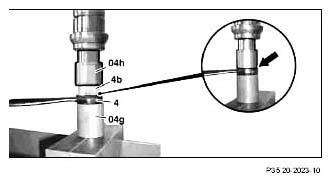

   Fig 4: Pressing Rubber Mount Into Tie Rod
