Remove/install radius rod - AR35.20-P-0111MB

MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection

Illustrated for code Z07

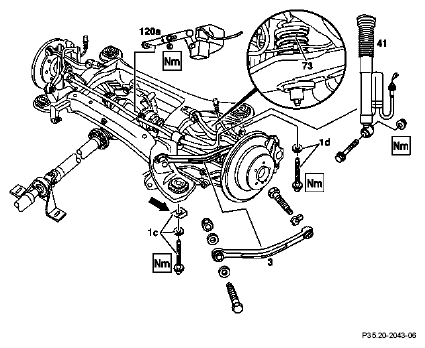

Fig 1: Identifying Radius Rod Remove/Install Components - Model 220.175/178

MODIFICATION NOTES

6.9.00	Value changed from 95 Nm to: 1st stage 60 Nm 2nd stage 90°	Value changed to BA35.10-P-1001-01A for model 220	*BA35.10-P-1001-01A
6.9.00	Value changed from 95 Nm to: 1st stage 60 Nm 2nd stage 90°	Value changed to BA35.10-P-1002-01A for model 220	*BA35.10-P-1002-01A

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under load	Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
Installation	Replace self-locking nuts and bolts
1	Detach level sensor control rod (120a) from torsion bar link		*BA82.10-P-1001-02A
2	Clamping rear spring	for code Z07 only	AR32.20-P-0200-06MB
		Tensioning device	Figure
		Tensioning plates	Figure
3	Detach spring strut (41) from spring control arm		*BA32.25-P-1005-04B
4	Use a suitable attachment and pit lift or floor jack beneath rear-axle center assembly to support rear axle
5	Unscrew front and rear mounting bolts (1c and 1d) on one side of rear axle	Ensure that the stop plate (arrow) for the front rear-axle mount is correctly positioned. Installation: Chase thread on frame floor with tap
		Front rear-axle mounting bolts	*BA35.10-P-1001-01A
		Rear rear-axle mounting bolts	*BA35.10-P-1002-01A
6	Carefully lower rear axle until the bolted connection of the torque strut to the rear-axle carrier is accessible	The rear axle may only be lowered on one side. Do not damage the brake hose and exhaust system. Disconnect exhaust system if necessary.
7	Remove torque strut (3) from wheel carrier and rear axle carrier	Installation: The rear axle shaft must be horizontal when tightening the nuts
		Torque strut to wheel carrier	*BA35.20-P-1002-03B
		Torque strut to rear axle carrier	*BA35.20-P-1001-03B
8	Install in the reverse order

STRUTS

Number	Designation		Model 220.025/026/028/063/ 065/067/070/073/074/ 075/125/126/128/163/ 165/167/170/173/174/ 175/176/178/179/875/ 878
BA32.25-P-1005-04B	Nut, rear strut to spring control arm	Nm	110

REAR AXLE CARRIER

Number	Designation				Model 220
BA35.10-P-1001-01A	Self-locking bolt, front rear axle carrier rubber mount to frame floor			Nm	-
		with bolt	Stage 1	Nm	60
		flange ø 24 mm	Stage 2	∠°	90
		with bolt	Stage 1	Nm	60
		Flange dia. ø 26mm	Stage 2	∠°	90
BA35.10-P-1002-01A	Self-locking bolt, rear axle carrier rear rubber mount to frame floor			Nm	-
		with bolt	Stage 1	Nm	60
		flange ø 24 mm	Stage 2	∠°	90
		with bolt	Stage 1	Nm	60
		Flange dia. ø 26mm	Stage 2	∠°	90

TORQUE STRUT

Number	Designation				Model 220
BA35.20-P-1001-03B	Self-locking nut, tension arm to rear axle carrier	M12		Nm	70
BA35.20-P-1001-03B	Self-locking nut, tension arm to rear axle carrier	M14		∠°	120
BA35.20-P-1002-03B	Self-locking nut, torque strut to wheel carrier	M12		Nm	70
		M14	Stage 1	Nm	90
		M14	Stage 2	∠°	60
		M16		Nm	230

REAR AXLE LEVEL SENSOR

Number	Designation		Model 220 except model 220 with code 487
BA82.10-P-1001-02A	Nut, lever sensor control rod to torsion bar link	Nm	10

Fig 2: Identifying Tensioning Device (202 589 01 31 00)

Fig 3: Identifying Tensioning Plates (202 589 13 63 00)
