Remove/install radius rod - AR35.20-P-0111M

MODEL 215.374 /376 /379

MODEL 220.074 /174 /176 /179

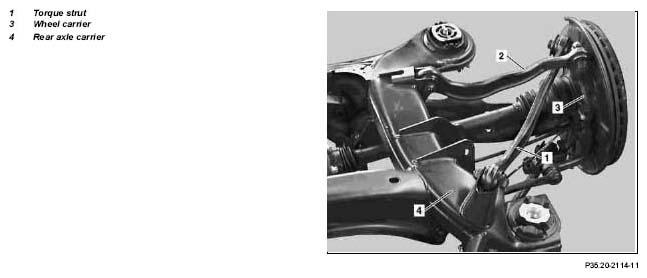

Fig 1: Identifying Radius Rod Remove/Install Components - Model 215.374/376

G04845415

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Remove rear axle.	Model 215.376/379, 220.176/179	AR35.10-P-0010N
		Model 220.074/174	AR35.10-P-0010AM
		Do not remove the rear axle from the assembly top and secure with tensioning strap to prevent it from falling down.
2	Detach torque strut (1) on wheel carrier (3) and rear axle carrier (4)	Installation: When tightening the camber strut and rear axle carrier, the vehicle must be relieved of load and on its wheels. Otherwise the rubber mounts are constantly under preload and are damaged as a result.
			*BA35.20-P-1002-03B
			*BA35.20-P-1001-03B
3	Install in the reverse order

TORQUE SPECIFICATION

TORQUE STRUT

Number	Designation				Model 215	Model 220
BA35.20-P-1001-03B	Self-locking nut, tension arm to rear axle carrier	M12		Nm	70	70
BA35.20-P-1001-03B	Self-locking nut, tension arm to rear axle carrier	M14		∠°	120	120
BA35.20-P-1002-03B	Self-locking nut, torque strut to wheel carrier	M12		Nm	70	70
		M14	Stage 1	Nm	90	90
		M14	Stage 2	∠°	60	60
		M16		Nm	230	230
