Adjusting wiper system - AR82.30-P-6400-01M

Model 215, 220

WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation		Model 215	Model 220
BE82.30-P-1003-01E	Angle of incidence of wiper arm on driver-side in parked position	∠ °	2.0...6.0	2.0...6.0

WINDSHIELD WIPER

Number	Designation		Model 215	Model 220
BA82.30-P-1005-01A	Nut, wiper system	Nm	20	20

Fig 1: Identifying Adjustment Tool Set (211 589 02 21 00)

The wiper system may only be adjusted if the test values of wiper arms deviate from the tolerance range in parked position.

The specified adjustment values are only valid for left-hand drive vehicles. For right-hand drive vehicles, the corresponding sign has to be changed.

Shown on model 215

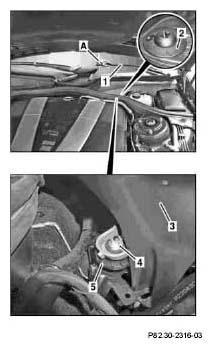

Install choke angle gauge (A) to driver-side wiper arm (1).
Open hood.
See Operating Instructions
Remove spreader clip (2) and push back water collector (3) until jam nut (4) is accessible.
Loosen jam nut (4) and turn adjusting nut (5) until the correct adjustment value is shown on the dial of the choke angle gauge (A).
Tighten counternuts (4)
Install spreader clip (2).
Replace damaged spreader clip (2).
Close hood and remove choke angle gauge (A) from driver-side wiper arm (1).

Fig 2: Identifying Angle Gauge And Driver-Side Wiper Arm
