Remove and install cover on rear seat cushion - AR91.18-P-1850MB

MODEL 220.0 /1 except CODE (223b) Electrically adjustable rear bench seat except CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package with CODE (248) rear seat with integral child seat

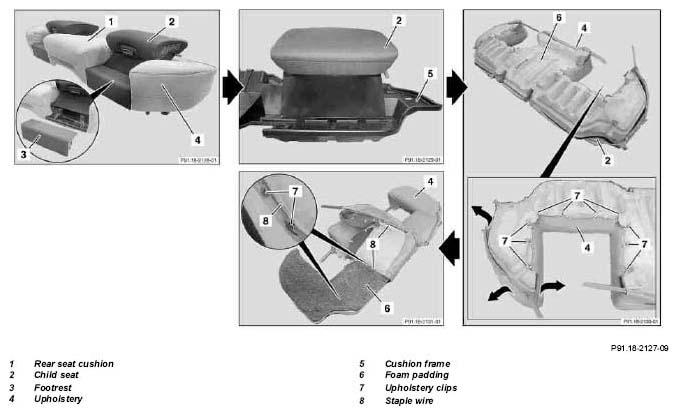

Fig 1: Identifying Cover On Rear Seat Cushion Remove/Install Components - Model 220.0 /1

	Remove/Install
1	Remove rear seat cushion (1).	An assistant is needed.	AR91.12-P-1020MA
2	Let down child seat (2) and lock
3	Unclip footrest (3)
4	Place rear seat cushion (1) with the covering (4) facing downwards on a suitable base
5	Press down cushion frame (5), pull out covering (4) at the insert fold
6	Remove cushion frame (5) with child seat (2) from the foam padding (6)
7	Detach stapling clips (7) from the stapling wires (8) on the child seat recesses
8	Pull off covering (4) from outside over the foam support (6)	Only turn around the corners of the covering (4).
9	Position the foam padding (6) with the covering (4) upwards
10	Detach stapling clips (7, 2 pieces) from the stapling wire (8)	Detach the covering (4) from the foam padding (6) from the outside inwards.
11	Remove covering (4) from the foam padding (6)
12	Install in the reverse order
