Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off the lifting platform. |
Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
|
Risk of injury
to skin and eyes caused by handling hot or glowing objects. |
Wear safety gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
 |
Notes on self-locking nuts and bolts |
All models |
AH00.00-N-0001-01A |
| 1 |

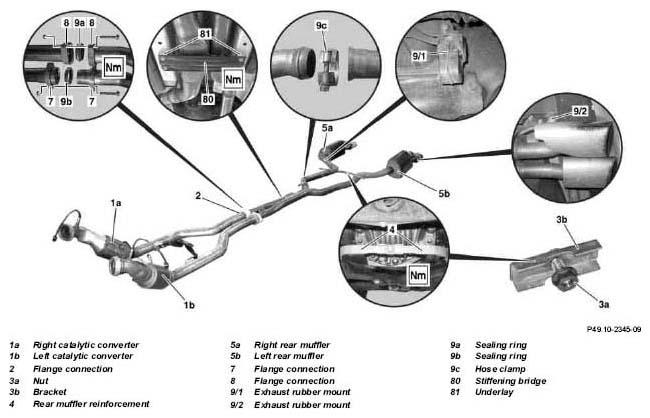

Dismount stiffening bridge (80) with underlay (81) |
 |
*BA61.10-P-1002-01D |
| 2 |
Remove nut (3a) for tapping plate (3b) at rear muffler reinforcement (4) |
|
*BA49.10-P-1013-01L |
| 3 |
Detach hose clamp (9c) |
|
*BA49.10-P-1012-01L |
| 4 |
Detach and remove the right rear muffler (5a) from the exhaust rubber mounts (9/1, 9/2) |
 Installation:
Coat exhaust rubber mount with liquid lubricant for the purpose of easier installation. Bolt together right rear muffler (5b) and left rear muffler (5a) with bracket (3b) and nut (3a). Align right rear muffler (5b) and Bolt together using hose clamp (9a). |
|
| |
|
Lubricant |
*BR00.45-Z-1002-06A |
| 5 |
Open flange connection (2) for rear right catalytic converter (1a) and left catalytic converter (1b) |
|
*BA49.10-P-1002-01G |
| 6 |
Detach and remove the left rear muffler (5a) from the exhaust rubber mounts (9/1, 9/2) |
Installation:
Coat exhaust rubber mount with liquid lubricant for the purpose of easier installation. |
|
| |
|
Lubricant |
*BR00.45-Z-1002-06A |
 |
Checking |
|
|
| 7 |
Check exhaust rubber mount (9/1, 9/2) and sealing ring (9a, 9b) on flange connection (2) |
Check for wear, replace if required: |
|
| 8 |
Install in the reverse order |
|
|
|
Checking |
|
|
| 9 |
Inspect installation position and clearance of exhaust system |
The exhaust system must be installed free of stress, if necessary: ↓ Align exhaust system. |
|
|
Risk of accident
caused by vehicle starting off by itself when engine is running. Risk of injury
caused by contusions and burns during starting procedure or when working near the running engine |
Secure vehicle to prevent it moving off. Wear closed and close-fitting work clothes. Do not grasp hot or rotating parts. |
|
| 10 |
Conduct engine test run and inspect exhaust system for leaks |
|
|
