Central gateway control module location/task - GF00.19-P-4100S

Models 215, 220

Central gateway control module (N93)

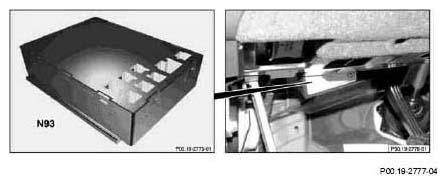

Fig 1: Identifying Central Gateway Control Module (N93)
G04850422
  Central gateway control module, location The central gateway control module (N93) is located in the cockpit on the left in the direction of travel in the area of the A-pillar under the driver's footwell cover.
  Central gateway control module, task   GF00.19-P-4100-01S
