Removing and installing battery - AR54.10-P-0005I
MODEL 215, 220

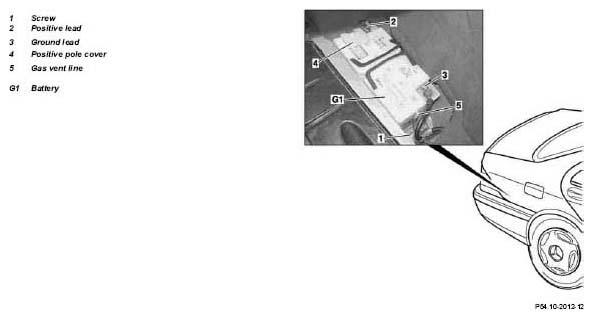

Shown on model 220
| Removal, installation | |||
| Explosion hazard
from explosive gas. Danger of poisoning and acid burns
when battery acid is swallowed. Danger of acid burns to skin and eyes from battery acid or when handling damaged lead-acid batteries. |
Flames, sparks, open light and smoking prohibited. Wear acid resistant gloves, clothing and goggles. Store battery acid only in suitable, appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on batteries | All models | AH54.10-P-0001-01A | |
| 1 | Remove ignition key | ||
| 2 | Pivot trunk cover up | ||
| 3 | Unscrew screw (1) and remove holder | ||
| 4 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| 5 | Disconnect ground lead (3) from battery | ||
| 6 | Remove gas vent line (5) from battery (G1) | ||
| 7 | Remove positive pole cover (4) upward | ||
| 8 | Disconnect positive lead (2) from battery | ||
| 9 | Remove battery (G1) | ||
| 10 | Install in opposite order |
