PTS switch, location - GF54.65-P-4101-01AC

Models 215, 220 as of 01.07.02 with code (220a) Parktronic system (PTS)

Location illustrated on model 220

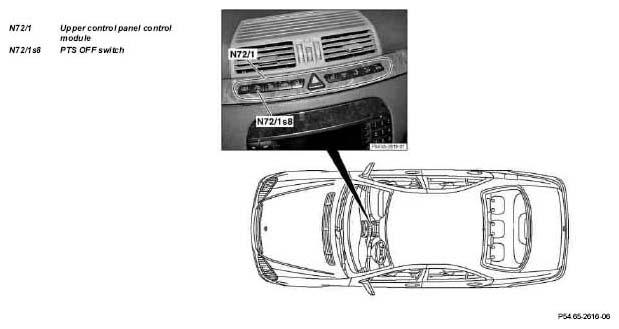

Fig 1: Identifying Upper Control Panel Control Module And PTS OFF Switch - Illustrated On Model 220
G04849677
