Left signal acquisition and actuation module, location - GF54.21-P-4101-01I

Shown on model 220

The left front SAM control unit (N10/6) is located on the rear left of the engine compartment and is pushed onto the left front fuse and relay module (K40/6) from underneath.

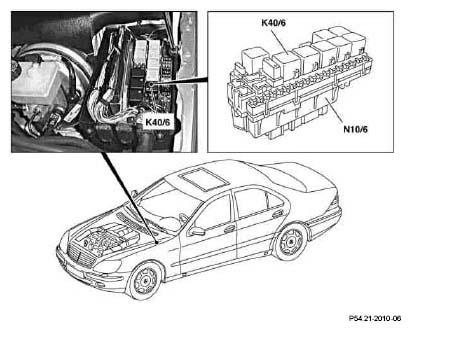

Fig 1: Identifying Left Front SAM Control Unit And Fuse And Relay Module
G04849615
