Removing and installing cover below instrument panel (right) - AR68.10-P-1520M

MODEL 220

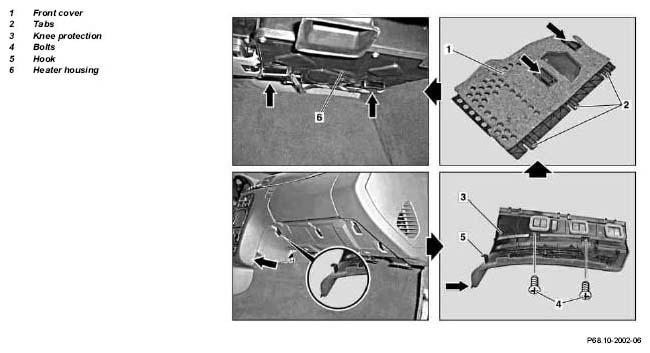

Fig 1: Identifying Instrument Panel Remove/Install Components - Model 220
G04851215
REMOVINGINSTALLING Remove/install
1 Remove cover (1) with catch lugs (2) out of knee protection (3) toward front and rear from both retaining brackets (arrows) on heater housing (6) IMPORTANTInstallation:  Install both front catch lugs (arrows) for cover (1) into retaining bracket (arrows) on heater housing (6).
2 Unclip footwell illuminations from knee protection (3) and disconnect connector.
3 Unscrew screws (4)
4 Remove knee protection (3) with hooks (5), (4 each) downward out of instrument panel and simultaneously from center console. NOTESInstallation  : Ensure that side guide lugs (arrow) of knee protection (3) are correctly installed in area of center console (arrow).
5 Install in reverse sequence.
