Removing and installing ashtray housing at front of center console - AR68.20-P-2400M

MODEL 215, 220

Illustrated on model 220

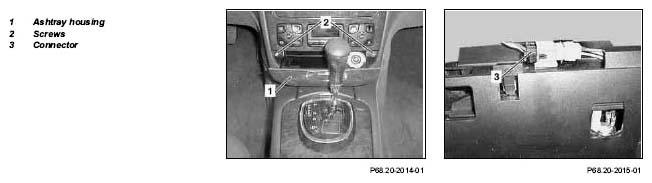

Fig 1: Identifying Removal/Installation Ashtray Housing At Front Of Center Console - Model 215,220

	Removal, installation
1	Move selector lever to position "D"
2	Open ashtray housing (1)
3	Unscrew screws (2)
4	Pull out ashtray housing (1)
5	Disconnect connector (3)
6	Install in opposite order
