Remove |
|
|
| 1 |
Remove lumbar support control valve for rear seat backrest |
|
AR91.12-P-1670M |
| 2 |
Remove door sill molding on front and rear doors |
Rear door sill molding screwed in area of lumbar support control valve |
|
| 3 |

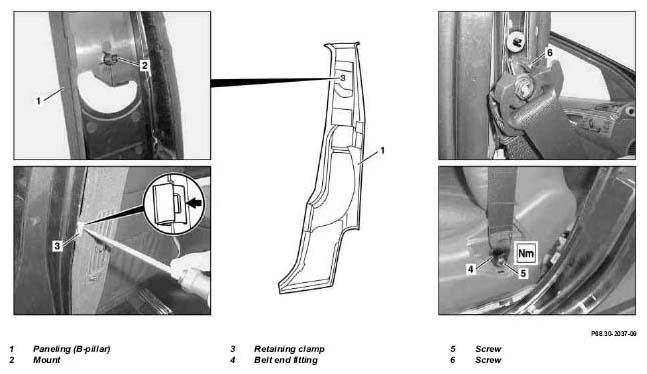

Remove edge guard in area of paneling (1) |
|
|
| 4 |
Press paneling (1) out of retaining clips (3) with screwdriver |
|
|
| 5 |
Unscrew screw (5) from belt end fitting (4) |
|
|
| 6 |
Pull out belt at paneling (1) and detach paneling |
|
|
 |
Install |
|
|
| 7 |
Check retaining clips (3) (7 each) on B-pillar |
|
|
| 8 |
Guide belt end fitting (4) through opening in paneling (1) |
|
|
| 9 |
Guide bolt (6) into mount (2) for paneling (1) |
|
|
| 10 |
Clip paneling (1) to retaining clips (3) |
|
|
| 11 |
Screw belt end fitting (4) to driver's seat with bolt (5) so that it still can be moved |
 |
*BA91.40-P-1001-01A |
| 12 |
Install edge guard on B-pillar |
|
|
| 13 |
Install front and rear door sill molding |
|
|
| 14 |
Remove lumbar support control valve for rear seat backrest |
|
AR91.12-P-1670M |
| 15 |
Check adjustable upper belt guide fitting on B-pillar for proper function |
|
|
