Cutting out paneling in trunk - AN68.30-P-0002-01I

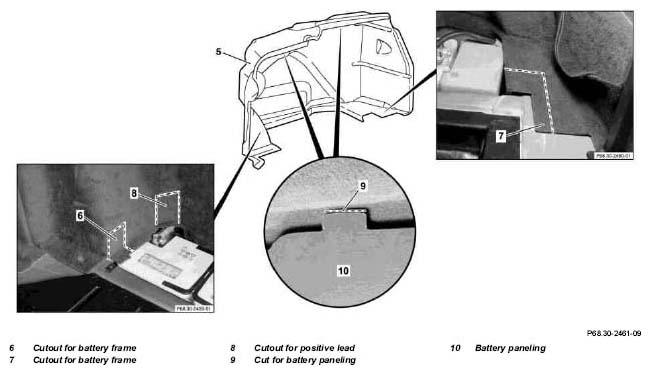

Fig 1: Identifying Cutting Out Paneling In Trunk

1. Mark right side paneling (5) in area of battery frame (6, 7) and positive lead (8) and cut out.
2. Insert battery paneling (10).
3. Mark cuts (9) and cut in.
4. Remove battery paneling (10)
