Removing and installing microphone - AR82.62-P-7700I
MODEL 215, 220 with CODE (810) Sound system
Interior microphone for sound amplifier

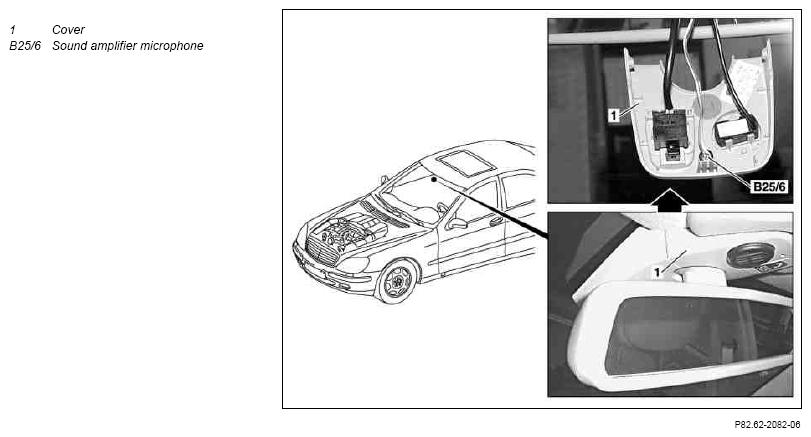

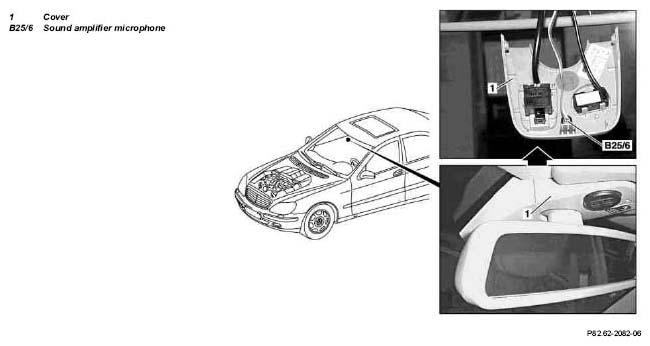

Illustrated on model 220
| Removal, installation | |||
| 1 | Remove overhead control panel control module | AR82.20-P-1000M | |
| 2 | Unclip cover (1) | ||
| 3 | Unclip sound amplifier microphone (B25/6) | ||
| 4 | Disconnect connector | ||
| 5 | Install in opposite order | ||
| 6 | Check for proper function |
