Removing and installing handset - AR82.70-P-8912M

MODEL 215, 220 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) in center arm rest

Shown on model 220

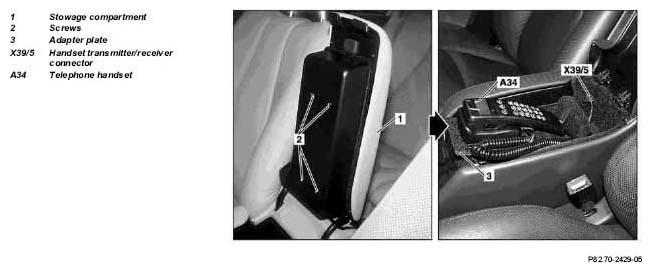

Fig 1: Identifying Handset Remove/Install Components (Shown On Model 220)

	Removal, installation
1	Open stowage compartment (1)
2	Unscrew screws (2)
3	Remove adapter plate (3) from stowage compartment (1) together with telephone handset (A34) until handset transmitter/ receiver connector (X39/5) is accessible	The adapter plate (3) is held by 4 screws (2) only.
4	Disconnect handset transmitter/receiver connector (X39/5)
5	Install in the reverse order
