Removing and installing fiber optic cable - AR82.70-P-0004ME
MODEL 215, 220
Between control modules right rear seat

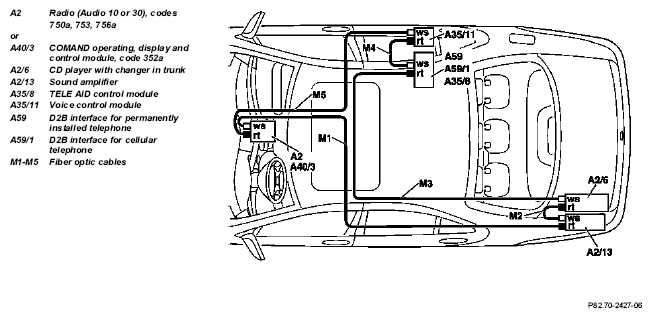

Illustrated on model 220
Removing fiber optic cable M4
| Removal, installation | |||
| Notes on fiber optic cables | AH82.70-P-0001-02A | ||
| 1.1 | Remove rear seat cushion | AR91.12-P-1620MA | |
| 1.2 | Remove rear seat cushion | Model 220 with bucket seats (code 401), right side only |
AR91.12-P-1620M |
| 2.1 | Remove seat adjustment device | Model 220 with bucket seats (code 401), right side only |
AR91.10-P-1450M |
| 3 | Remove installation plate from floor | ||
| 4 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| 5 | Leave fiber optic cable module disconnected | AR82.70-P-0004-01A | |
| 6 | Install in opposite order | ||
| 7 | Start up and check for proper function |
