Removing and installing fiber optic cable - AR82.70-P-0004MD
MODEL 215, 220
Between trunk control modules
Illustrated on model 220

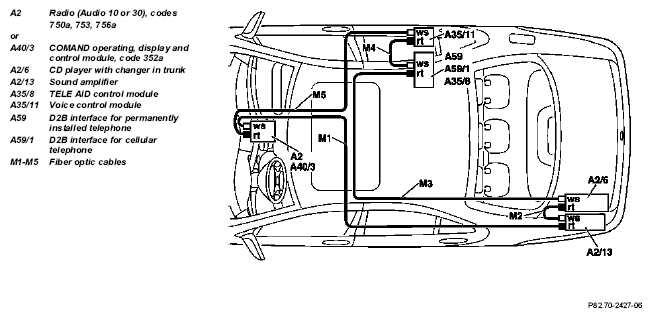

Removing fiber optic cable M2
| Removal, installation | |||
| Notes on fiber optic cables | AH82.70-P-0001-02A | ||
| 1 | Remove paneling in trunk | AR68.30-P-4600M | |
| 2 | Remove control module (sound amplifier and CD player) from floor and lift out upward | ||
| 3 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| 4 | Leave fiber optic cable module disconnected | AR82.70-P-0004-01A | |
| 5 | Install in opposite order | ||
| 6 | Start up and check for proper function |
