Remove/install rear dome lamp - AR82.20-P-0113MC
MODELS 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection with gimbal-mounted lamp
| Remove, Install | |||

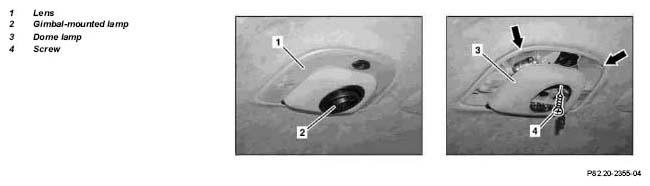

| 1 | Unclip gimbal-mounted lamp (2) and disconnect connector | ||
| 2 | Unclip lens (1) | ||
| 3 | Unscrew screw (4) | ||
| 4 | Release clamps (arrows), remove dome lamp (3) and disconnect connector | ||
| 5 | Install in the reverse order |
