Remove/install front axle level sensors - AR82.10-P-0004I

MODEL 215

MODEL 220

Shown on model 220 AIRmatic

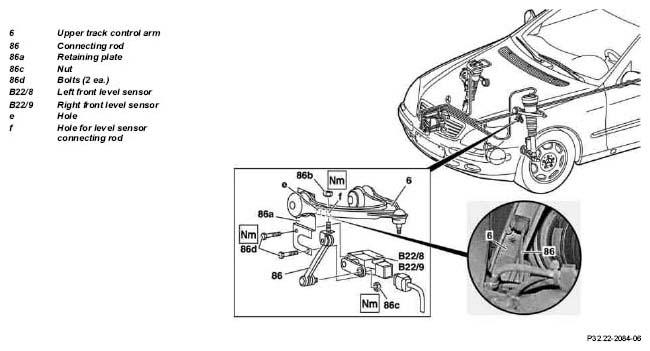

Fig 1: Identifying Front Axle Level Sensors Remove/Install Components (Model 220 AIRmatic)

	Remove/Install
	Replace self-locking nuts and bolts
1.1	Remove front wheels	Vehicles with AIRmatic (Code 489a)	AP40.10-P-4050Z
2	Disconnect connectors at front left and right level sensors (B22/8, B22/9)
3	Unscrew nut (86c) on connecting rod (86) from front left and right level sensors (B22/8, B22/9)		*BA82.10-P-1002-01A
4.1	Unscrew nut (86b) on connecting rod (86) from upper wishbone (6) and remove connecting rod (86)	Vehicles with AIRmatic (Code 489a) Installation:  Attach connecting rod (86) to the outermost hole (f) on the upper wishbone (6)
			*BA82.10-P-1001-01A
5	Unscrew bolts (86d) on retaining plate (86a) and remove front left and right level sensors (B22/8, B22/9)		*BA82.10-P-1003-01A
6	Install in the reverse order
7	After replacing the level sensors, calibrate vehicle level with Star Diagnosis (level calibration)

FRONT AXLE LEVEL SENSOR

Number	Designation		Model 215	Model 220
BA82.10-P-1001-01A	Nut, level sensor connecting rod to upper wishbone	Nm	10	10
BA82.10-P-1002-01A	Nut, connecting rod to level sensor	Nm	5	5
BA82.10-P-1003-01A	Bolt/nut of level sensor to retaining plate	Nm	4	4
