Remove/install antenna - AR82.70-P-8951NA
MODEL 215

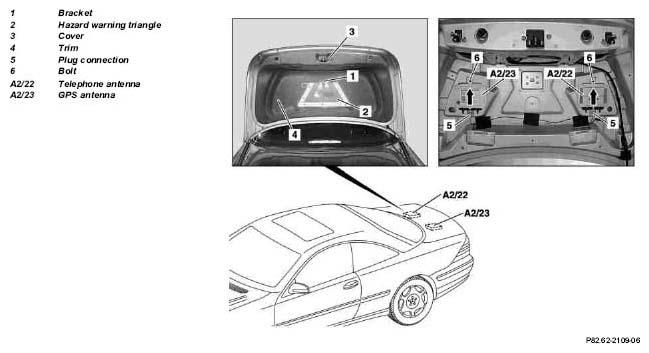

Telephone or GPS antenna in trunk lid
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Open trunk lid | ||
| 2 | Release bracket (1) and remove hazard warning triangle (2) from bracket | ||
| 3 | Slide bracket (1) to the left and remove | ||
| 4 | Unclip cover (3) | ||
| 5 | Remove trunk lid inner panel (4) | ||
| 6 | Unplug connector (5) | ||
| 7.1 | Remove bolt (6) and remove telephone antenna (A2/22) in direction of arrow | ||
| 7.2 | Remove bolt (6) and remove GPS antenna (A2/23) in direction of arrow | ||
| 8 | Install in the reverse order |
