Remove and install bracket for portable CTEL - AR82.70-P-8918M
MODELS 220, 215 as of 1.7.00 with CODE (852) CTEL preinstallation assembly at dome with CODE (854) MB portable CTEL

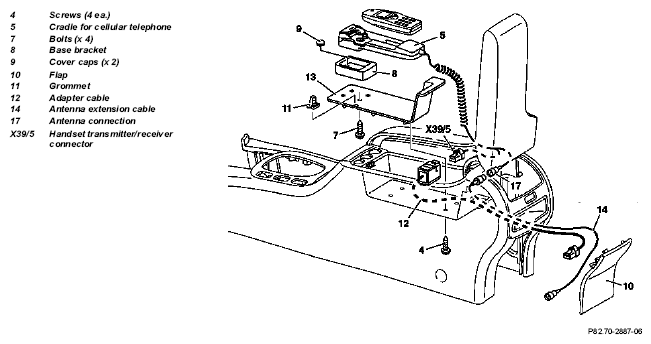

Shown on Model 220
| Removal, installation | |||
| 1 | Remove cellular telephone from cradle (5) | ||
| 2 | Open stowage shell and unscrew screws (4) | ||
| 3 | Open flap (10) at rear on center console | ||
| 4 | Separate handset transmitter/receiver connector (X39/5) and antenna connection (17) | ||
| 5 | Carefully pull plate (3) out of stowage shell | ||
| 6 | Unscrew the bolts (7). | ||
| 7 | Disconnect and remove adapter lead (12) and antenna extension lead (14) | ||
| 8 | Install in the reverse order |
