Transfer case power flow, as-built configuration - GF28.00-P-0802B

MODEL 463 up to 31.8.08 with TRANSFER CASE 750.65

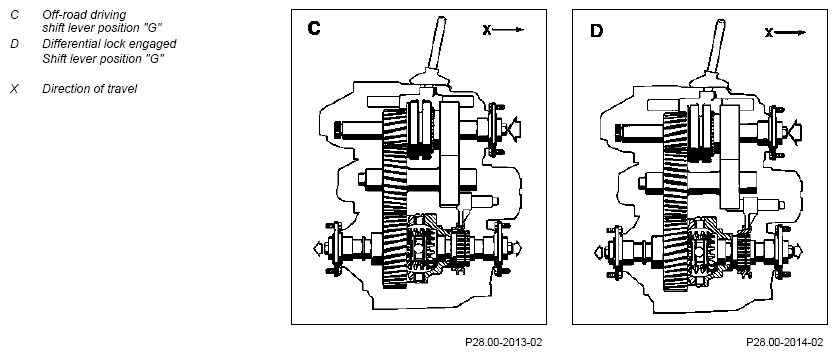

Fig 1: Transfer Case Power Flow Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

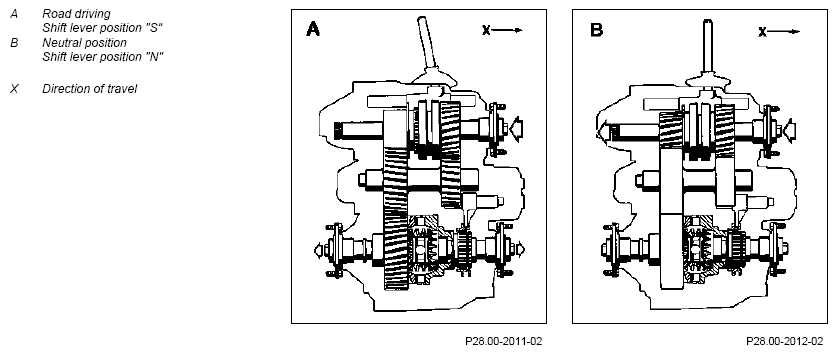

Fig 2: Transfer Case Power Flow Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
